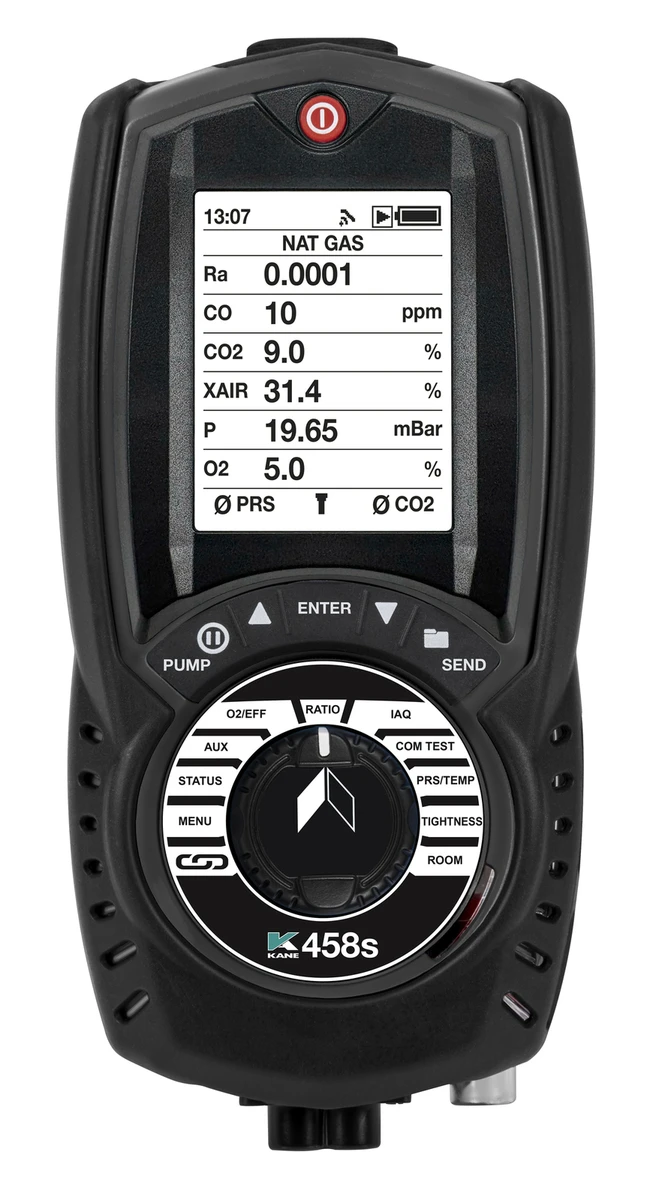

KANE458s Flue Gas Analyser with direct CO, CO2 & CO sensor protection
- Tests domestic gas, oil, biomass & some commercial appliances
- Latest upgradeable sensor technology
- Easy to use rotary dial
- Purge pump protection prevents accidental damage to CO sensor
- Wireless as standard
- Hydrogen (H2 ) ready – up to 20% blend
Features
- Structured commissioning test
- Rotary dial & 6 line display
- Data hold, log & print with user details to optional printer
- Combustion - Pressure - Let-by & Tightness
- Temperature - CO build up - Commission test
- 10 year 'no quibble' warranty when recertified by KANE
Applications
- Install & service domestic oil & gas appliances
- additional sensors to suit applications
- Safety checks – CO in rooms or around appliances
- Combustion performance checks
- Combustion efficiency checks
- Flue Draught
Measures
- CO2 direct with an Infra-Red sensor 0-20%
- CO 0-2,000ppm
- Differential temperature
- High accuracy differential pressure meter +/- 80mbar
- O2 0-21% (option)
- NO 0-600ppm (option)
- High Range CO 0-10,000ppm (option)
Calculates
- O2
- CO/CO2 ratio
- Excess air
- Combustion efficiency
- NOx (option)
Fuel Types
- Natural Gas
- LPG
- Wood Pellets
- Butane
- Light oil
- Propane
Box Contents
- Analyser
- Probe
- Pressure connectors
- USB charger
- Quick reference guide & analyser calibration certificate
Videos
Change Water Trap Filter KANE458s
Connecting KANE458s To Mobile KANE Wireless Printer App
Connect KANE458s To KANE IRP-2 Printer
Deleting Stored Combustion Reports KANE458s
Differential Temperature Measurement KANE458s
Flue Gas Analysis KANE458s
Flue Integrity Test KANE458s
How To Charge KANE458s/KANE258 Flue Gas Analyser
Retrieve Stored Combustion Report KANE458s
Tightness test KANE458s
Service Price
| YEAR 1-4 | YEAR 5 |
|---|---|
| 186 € | 282 € |
All prices are in € Euros and are exclusive of VAT.
